Unlock Your PC's Potential with the Simplecom EC412 Expansion Card
The Simplecom EC412 Dual M.2 to PCI-E x4 and SATA 6G Expansion Card is the perfect solution for tech enthusiasts and professionals looking to enhance their computer's performance. This innovative expansion card allows you to add NGFF M.2 devices seamlessly, transforming your existing PC motherboard into a powerhouse of speed and storage.
Key Features:
- Dual M.2 Slots: Supports both PCI-E (M key, NVMe) and SATA (B key) M.2 devices, giving you the flexibility to choose high-speed or legacy storage options.
- Lightning-Fast Data Transfer: Achieve speeds of up to 32Gbps with the PCI-E interface for M key SSDs and up to 6Gbps for SATA-based B key SSDs.
- Simultaneous Operation: Connect and utilize two M.2 SSDs at the same time, maximizing your storage capacity and performance.
- No Driver Installation: Enjoy hassle-free installation with no additional drivers required, making it easy to upgrade your system.
Specifications:
- Interface: PCI Express X4 / SATA 6Gbps
- Supported M.2 SSD Types: 2230, 2242, 2260, and 2280
- Supported Lengths: 30mm, 42mm, 60mm, 80mm
Important Note:
Ensure compatibility by noting the following:
- M key M.2 is specifically for PCI-E (NVMe) SSDs, while B key is for SATA SSDs.
- B key M.2 SSDs require a SATA 7 pin cable connected to the motherboard to operate.
- NVMe M.2 SSDs need to be used with Intel 9 series (Z97, H97, Z170, X99) or later chipsets and Windows 8 or higher.

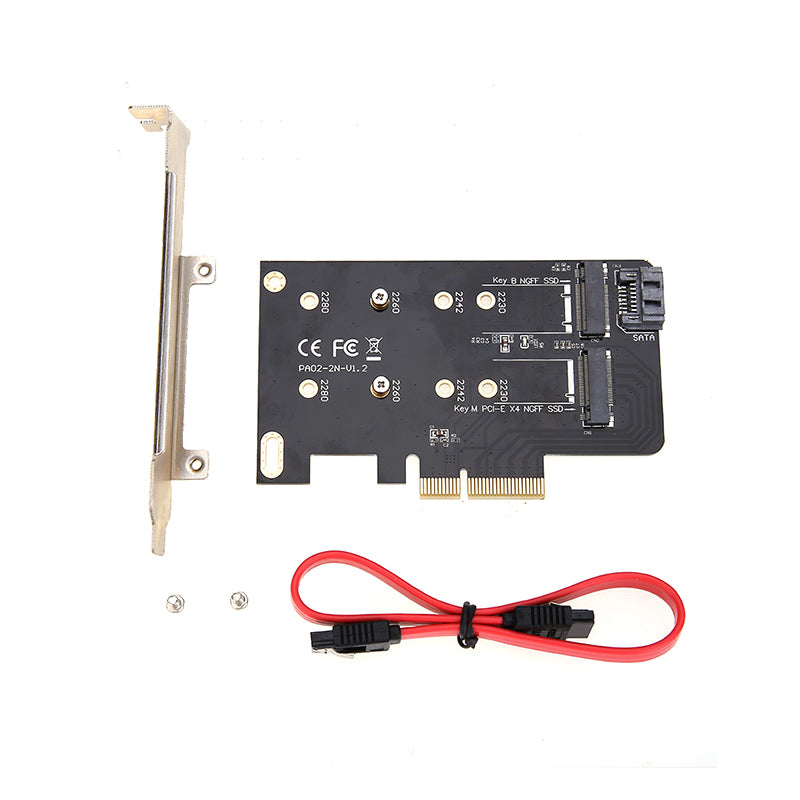

Package Contents:
- 1x PCI Express Expansion Card
- 2x Mounting Screws
- 1x SATA Cable
Elevate your PC's capabilities with the Simplecom EC412 Expansion Card and experience enhanced speed, efficiency, and storage like never before!
