Simplecom CM302v2 8K@60Hz HDMI 2.1 Bi-Directional Switch Selector

Experience Seamless Connectivity with the Simplecom CM302v2 Bi-Directional 2 Way HDMI 2.1 Switch Selector

The Simplecom CM302v2 Bi-Directional 2 Way HDMI 2.1 Switch Selector is your ultimate solution for effortlessly managing multiple HDMI devices. Designed for versatility, this advanced switch allows you to connect two HDMI sources or displays, providing exceptional flexibility for your entertainment setup.

Key Features:

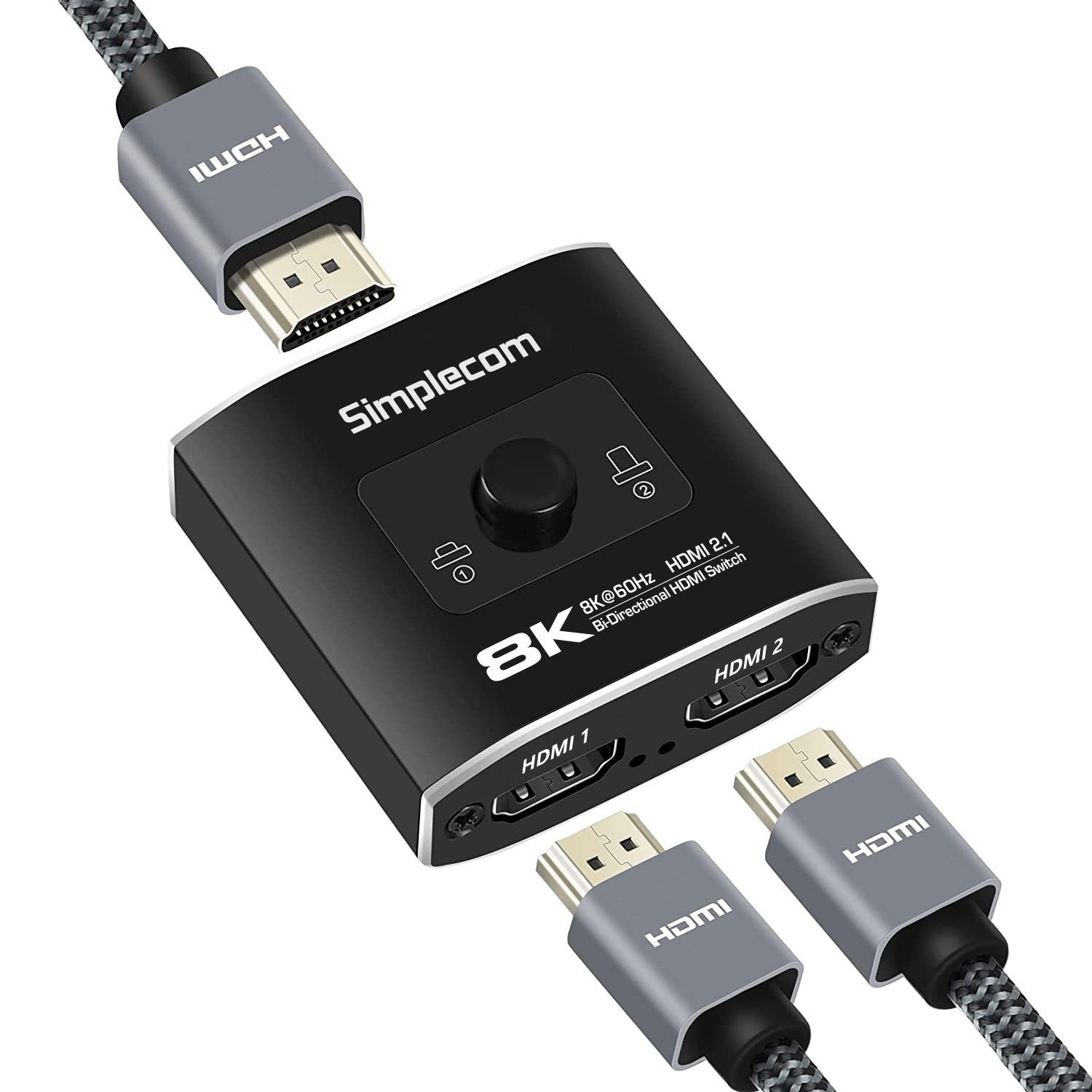

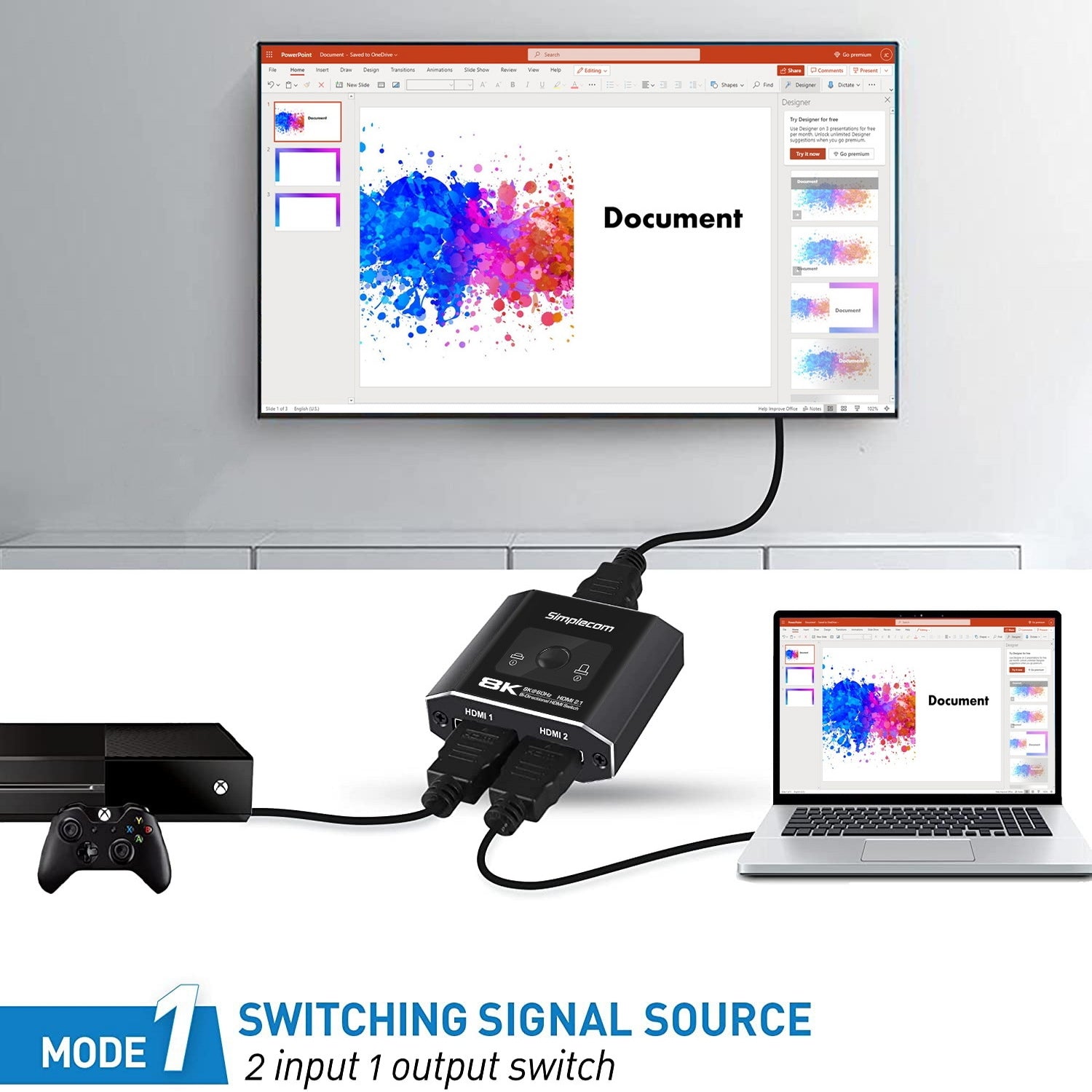

• Bi-Directional Functionality: Easily toggle between two HDMI sources or displays with a simple button press, eliminating the hassle of swapping cables.
• High Performance: Enjoy stunning video quality with support for resolutions up to 8K@60Hz and a bandwidth of 48Gbps, thanks to HDMI 2.1 compliance.

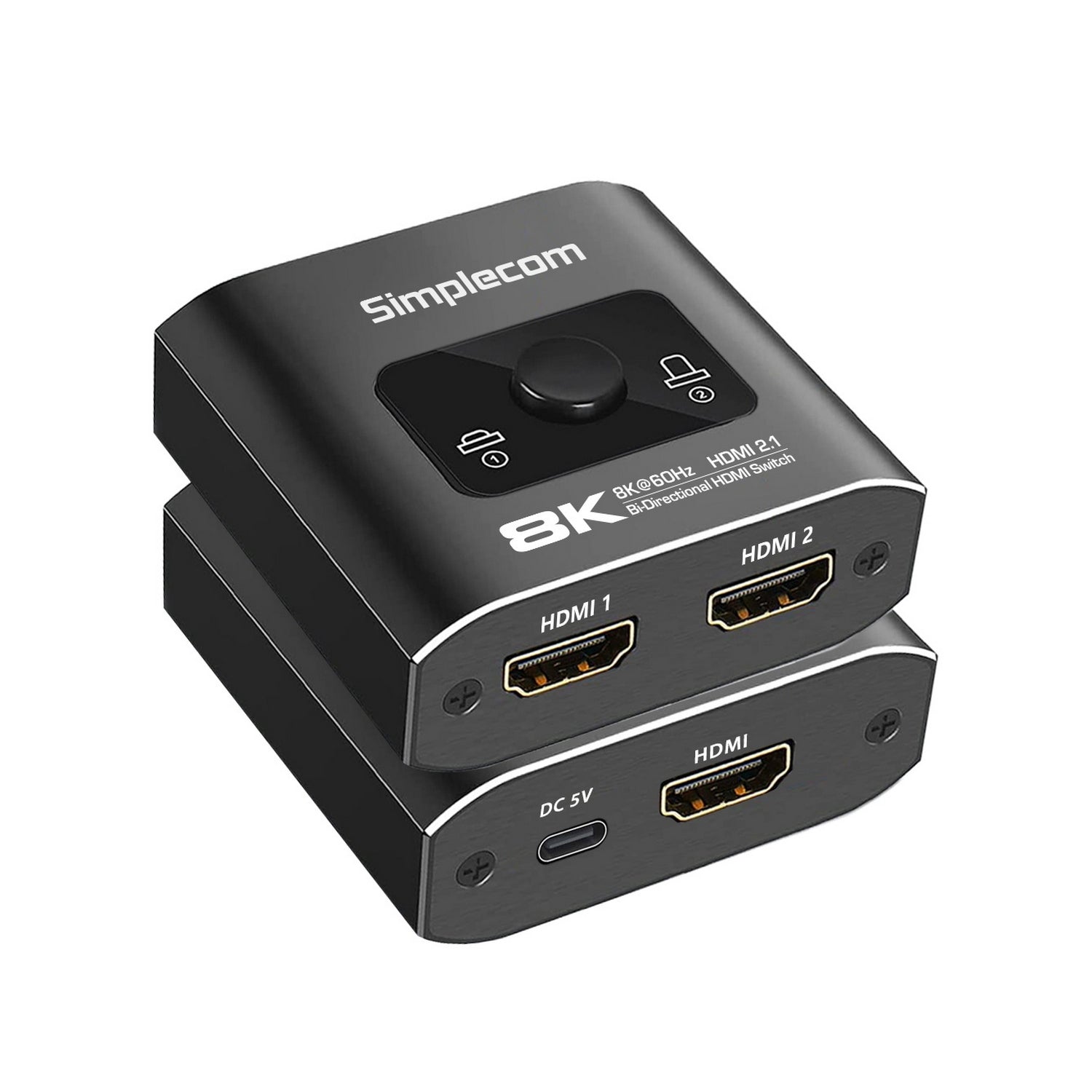

• Durable and Compact: With its robust aluminum alloy casing, the CM302v2 not only ensures heat dissipation but also is designed for portability and easy installation.
• Wide Compatibility: Compatible with various HDMI devices including game consoles, PCs, and TV boxes, as well as supporting a range of audio formats like DTS-HD, Dolby Atmos, and more.
• Power Efficient: Powered by the HDMI source device, it requires no external power, with a USB-C port available for backup power if needed.

Specifications:

Model: CM302v2
HDMI Version: HDMI 2.1
Video Resolution Support: Up to 1080@240Hz, 4K@120Hz, 8K@60Hz
Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
HDR Format Support: HDR10
HDCP Version Support: HDCP 2.3
Max Bandwidth: 48Gbps
Max cable distance: Input < 2M, Output < 2M
Max Operation Current: 15mA
Operating Temperature: (-15 to +55°C)

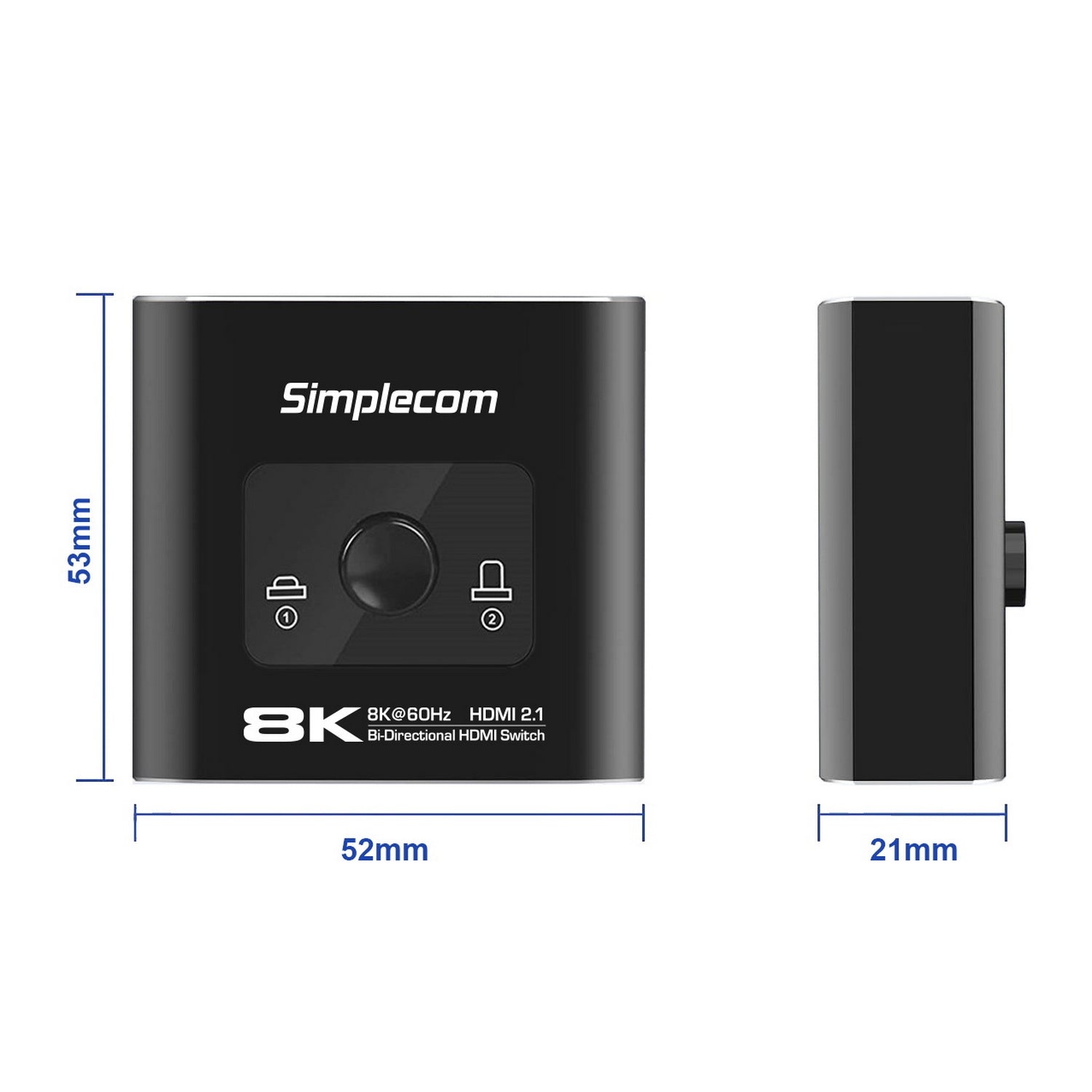

Dimensions: 53 x 52 x 21 mm
Weight: 45g

Package Contents:

• 1 x Bi-Directional HDMI Switch

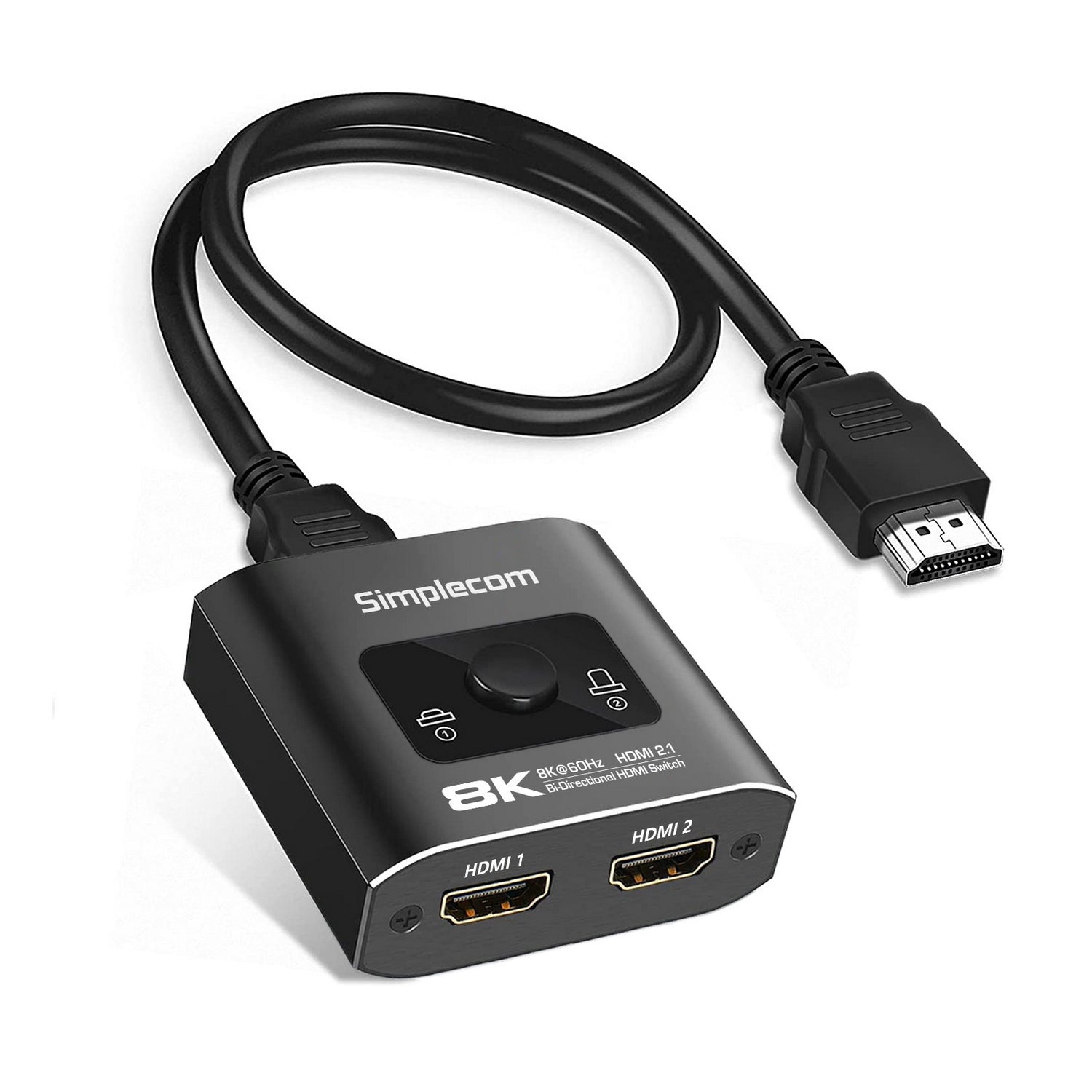

• 1 x HDMI cable
• 1 x User Manual

Important Notes:

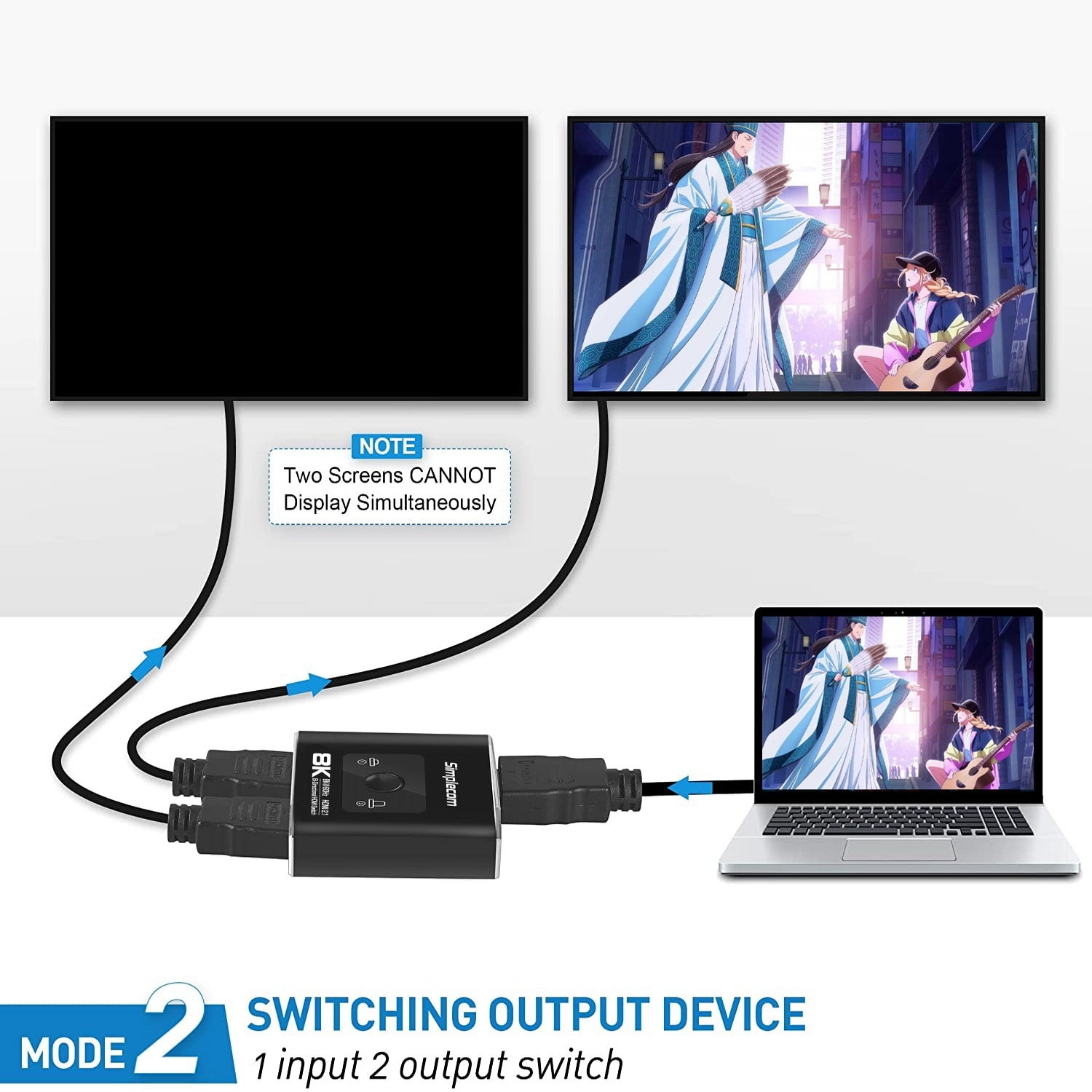

For optimal performance, the length of the HDMI cable connected to both ends of the switch should not exceed 2 meters. Please note that this manual HDMI switch does not support automatic switching, and two screens cannot display simultaneously in 1 Input 2 Outputs mode.

Upgrade your home entertainment experience today with the Simplecom CM302v2 Bi-Directional 2 Way HDMI 2.1 Switch Selector and enjoy the convenience of seamless switching between your favorite devices!
