150A Digital Power Analyzer with LCD Display and Anderson Style Plugs for Solar Applications

Discover the Ultimate Power Management Tool

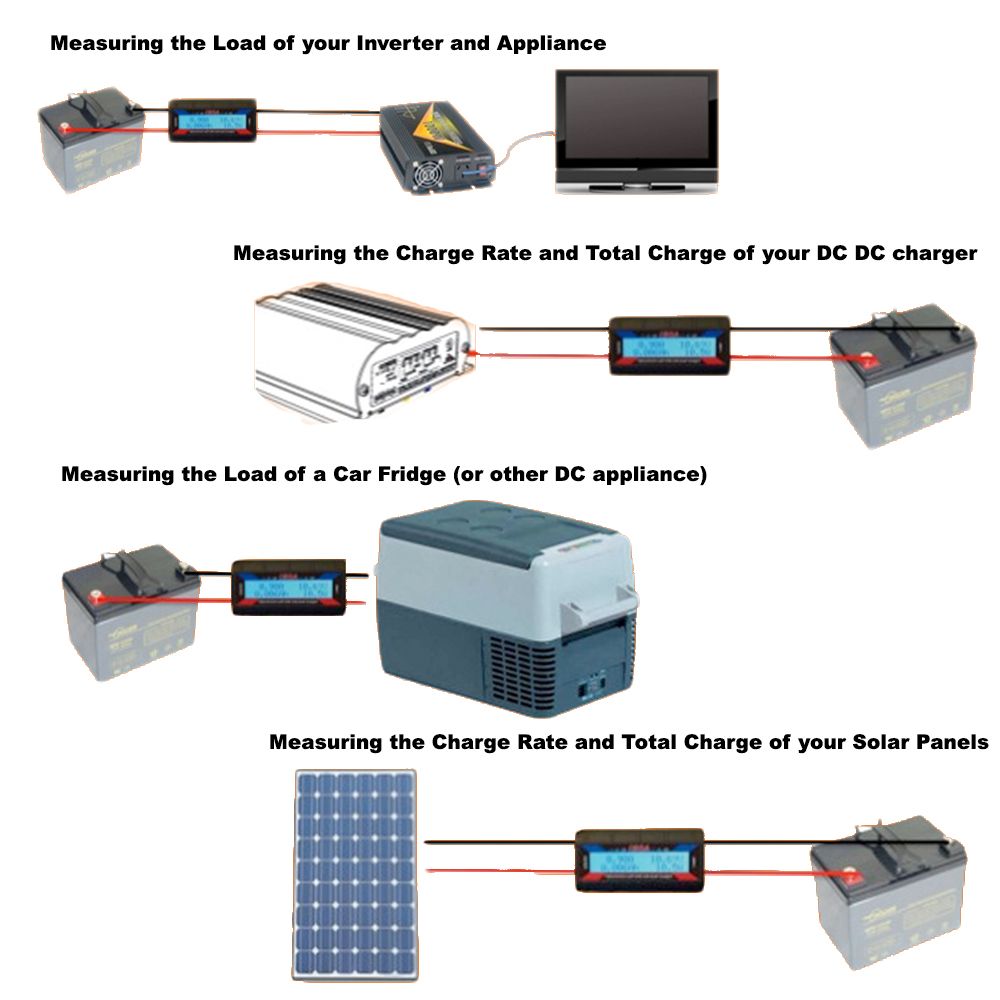

Introducing the 150A Watt Meter Power Analyzer—the essential companion for anyone looking to effectively monitor and manage their energy consumption. With its advanced digital LCD display and robust functionality, this power analyzer is perfect for solar setups, battery management, and more.

Key Features:

• Peak Current Protection: Safeguards your battery, ESC, motors, wiring, and connectors from potential damage due to peak currents.
• Voltage Verification: Ensures sufficient operating voltage under load for optimal performance.
• Individual Cell Balancing: Set cutoff voltages and assess battery capacity health with ease.
• Charger Operation Confirmation: Connect between your battery and charger to verify proper operation.
• Current Detection: Monitor receivers and actual operating current to determine if a UBEC is necessary.

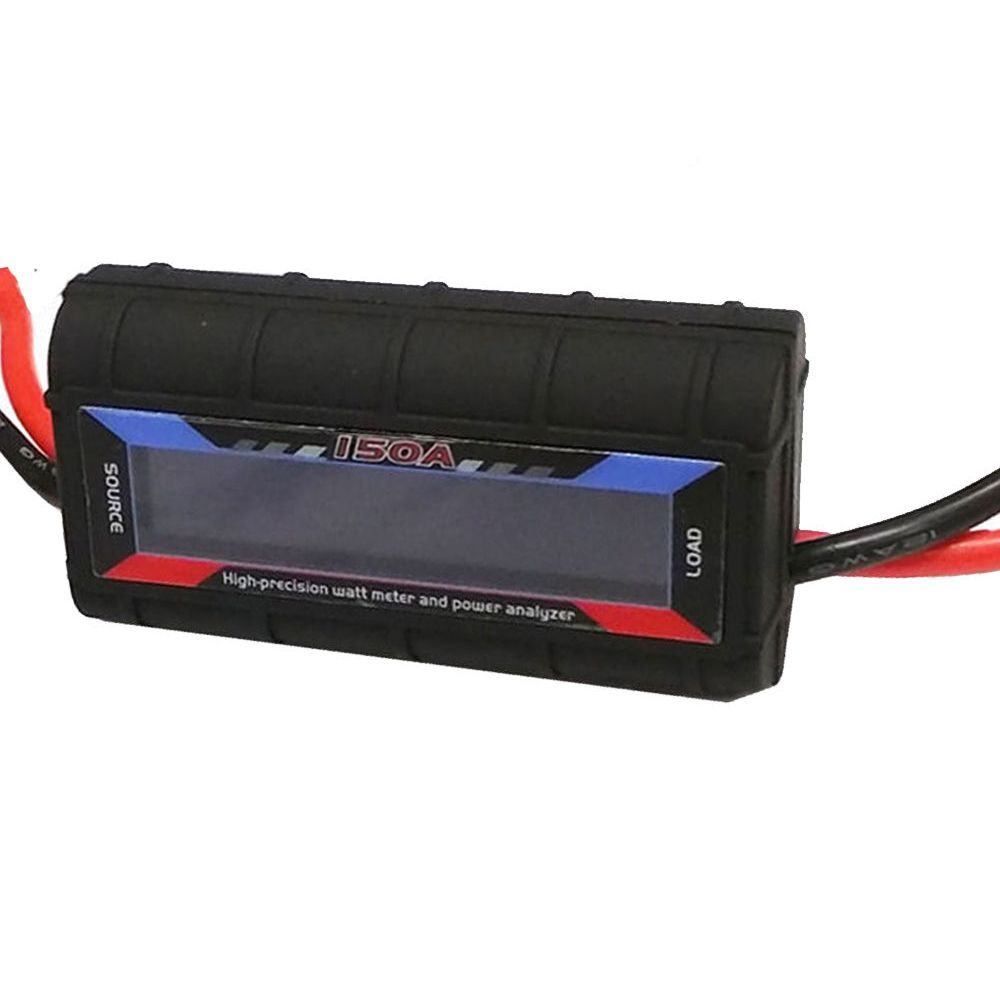

• Easy-to-Read Display: Blue backlit LCD screen for clear visibility in all conditions.
• Convenient Anderson Style Plugs: Comes with 2 Anderson Style Plugs for simple plug-and-play usage.

Comprehensive Measurements:

This power analyzer is designed to measure a wide range of electrical parameters:

• Amp Hours (Ah): Total charge delivered from source to load.
• Amp Peak (Ap): Highest amp value delivered, ideal for startup cycles.
• Amp (A): Real-time amperage being delivered.
• Voltage: Source voltage and minimum voltage for accurate monitoring.
• Power (Watts): Peak and ongoing wattage measurements.

Specifications:

• Operating Voltage: 4.8-60V (0V with optional auxiliary battery)
• Current Measurement: 0 to 130 Amps (0.01A resolution)
• Voltage Measurement: 0 to 60V (0.01V resolution)
• Power Measurement: 0 to 6554W (0.1W resolution)
• Ah Measurement: 0 to 65 Ah (0.001 Ah resolution)
• Watt Hours Measurement: 0 to 6554 Wh (0.1 Wh resolution)
• Dimensions: 85 x 42 x 25mm
• Weight: 85g
• Color: Black

Package Includes:

• 1 x 150A Watt Meter and Power Analyzer
• 2 x Anderson Style Plugs
• 1 x User's Manual

Upgrade your energy management experience with the 150A Watt Meter Power Analyzer. Perfect for enthusiasts and professionals alike, ensure your power systems are running efficiently and safely.
